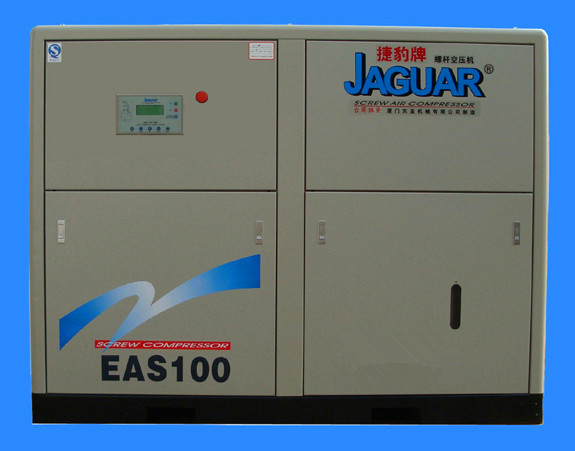

Electric standard EAS100

产品名称:Electric standard EAS100
详细参数:Screw Air Compressor,Stationary type 40-,75KW/100HP,EAS100。
相关说明:EAS100


Model

Mpa

EAS-100

Free Air Delivery Discharge Pressure

min

0.7

14.1

0.8

12.8

1.0

11.6

1.25

10

Discharge Temp

≤Environment Temp+10℃ Water Cooled≤40℃

Lubricant

Liter

60

Noise

A

75

Motor

Power

HP

75/100

RPM

RPM

2970

Starting Method


Y-ΔStarter

Electricity


220v/380v/415v 50HZ/60HZ

Driven


 直联

Cooling Model

Air Cooled & Water Cooled

Dimension

Length

mm

1950    1950

Width

mm

1300    1300

Height

mm

1500    1650

Weight

KG

1390    1410

Air Outlet Pipe Diameter

inch

2"法兰

Cooling Water Pipe Diamenter

inch

11/2"

Cooling Water  Dosage

min

200


Using German technology air end to ensure good performance and reliable quality. The low fault rate and low maintenance cost air ends are manufactured by advanced machining equipments to ensure the production tolerance being controlled within micron. Latest patent optimized profile is Teflon-coated 5-lobe and 6-flute with high efficient. High quality brand bearing,alloy steel gear case and rotor case make the operation more stable and reliable. Besides,the special triple oil seal allows much less leakage possibility.
