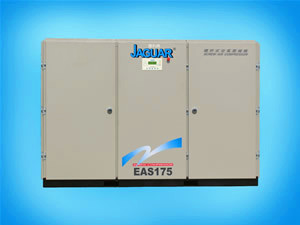

产品名称：Electric standard EAS175
详细参数：Screw Air Compressor,Stationary type 150hp,132KW/175H0P,EAS175.
相关说明：EAS175
Model | Mpa | EAS-175 |
Free Air Delivery Discharge Pressure | min | 0.7 | 24.1 |
0.8 | 22.9 |
1.0 | 20.5 |
1.25 | 16.8 |
Discharge Temp | ℃ | ≤Environment Temp+10℃ Water Cooled≤40℃ |
Lubricant | Liter | 94 |
Noise | A | 77 |
Motor | Power | HP | 132/175 |
RPM | RPM | 2970 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Cooling Model | Air Cooled & Water Cooled |
Dimension | Length | mm | 2790 |
Width | mm | 1860 |
Height | mm | 1800 |
Weight | KG | 2560 |
Air Outlet Pipe Diameter | inch | 3"法兰 |
Cooling Water Pipe Diamenter | inch | 11/2" |
Cooling Water Dosage | min | 300 |
Xiamen East Asia Machinery Co., Ltd. (EAM) , with total investment USD20,000,000 invested in 1990, with 30 years experience, has been one of the biggest professional manufacturers of air compressors in China. EAM has got full sets of necessary production licenses and certificates and now produces yearly over 20000 pcs of screw air compressor (5hp – 500hp), over 50000 pcs of piston air compressor (1/4hp – 30hp), over 10000 pcs of air receiver, over 10000 pcs of air dryer and over 10000 sets of line filter and separator. By its constant efforts and renovation, super capabilities in R&D, imported machining and processing equipments, reliable quality controlling, advanced testing facilities and scientific administration system, EAM had got the certificate of ISO9001, set up a professional factory with 70,000 sq.m and more than 150 sales net both in domestic market and over 30 countries and regions.
