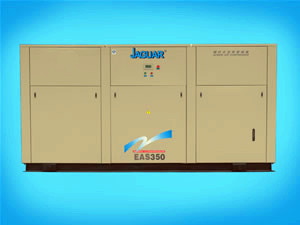

产品名称：Electric standardEAS-350
详细参数： Screw Air Compressor,Stationary type 300hp,250KW/340HP,EAS-350.
相关说明：EAS-350
Model | Mpa | EAS-350 |
Free Air Delivery Discharge Pressure | min | 0.7 | 43.8 |
0.8 | 41.4 |
1.0 | 37.8 |
1.25 | 33 |
Discharge Temp | ℃ | Water Cooled≤40℃ |
Lubricant | Liter | 185 |
Noise | A | 80 |
Motor | Power | HP | 250/340 |
RPM | RPM | 2980 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Cooling Model | Water Cooled |
Dimension | Length | mm | 3100 |
Width | mm | 2340 |
Height | mm | 1800 |
Weight | KG | 4610 |
Air Outlet Pipe Diameter | inch | 4"法兰 |
Cooling Water Pipe Diamenter | inch | 11/2" |
Cooling Water Dosage | min | 400 |
Using German technology air end to ensure good performance and reliable quality. The low fault rate and low maintenance cost air ends are manufactured by advanced machining equipments to ensure the production tolerance being controlled within micron. Latest patent optimized profile is Teflon-coated 5-lobe and 6-flute with high efficient. High quality brand bearing,alloy steel gear case and rotor case make the operation more stable and reliable. Besides,the special triple oil seal allows much less leakage possibility
