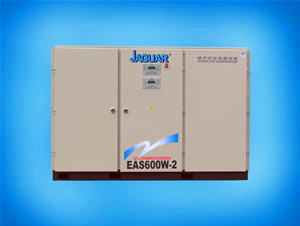

产品名称：EAS-600XScrew Air Compressor( Dual air end)
详细参数： Screw Air Compressor，Dual air end 600hp，200KW/270HP*2，EAS-600X。
相关说明：EAS-600X
Model | Mpa | EAS-600X |
Free Air Delivery Discharge Pressure | m3/min | 0.55 | 88.4 |
0.7 | 77 |
0.8 | 71.6 |
1.0 | 64.4 |
Cooling Model | Air Cooled & Water Cooled |
Discharge Temp | ℃ | ≤Environment Temp+10℃ Water Cooled≤40℃ |
Lubricant | Liter | 280 |
Noise | A | 85 |
Motor | Power | HP | 200/270*2 |
RPM | RPM | 2980 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Dimension | Length | mm | 4000 |
Width | mm | 2000 |
Height | mm | 2000 |
Weight | KG | 9000 |
Air Outlet Pipe Diameter | inch | 6"法兰 |
Cooling Water Pipe Diamenter | inch | 2 1/2" |
Cooling Water Dosage | min | 550 |
