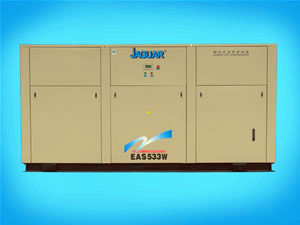

产品名称：EAS-550( High Voltage)
详细参数： Screw Air Compressor,High Voltage 550hp,400KW/533HP(6KV/10KV),EAS-550.
相关说明：EAS-550
Model | Mpa | EAS-550 |
Free Air Delivery Discharge Pressure | m3/min | 0.7 | 72.2 |
0.8 | 66.7 |
1.0 | 60.4 |
1.25 | 53.5 |
Cooling Model | Water Cooled |
Discharge Temp | ℃ | Water Cooled≤40℃ |
Lubricant | Liter | 200 |
Noise | A | 85 |
Motor | Power | HP | 400/533 |
RPM | RPM | 2980 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 6KV/10KV |
Dimension | Length | mm | 4000 |
Width | mm | 2000 |
Height | mm | 2050 |
Weight | KG | 8700 |
Air Outlet Pipe Diameter | inch | 6"法兰 |
Cooling Water Pipe Diamenter | inch | 31/2"内牙 |
Cooling Water Dosage | min | 500 |
