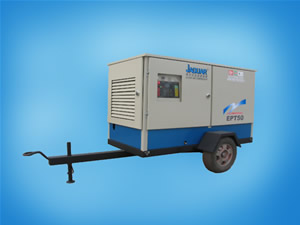

产品名称：EPT-50(Motor drive Portable)
详细参数：Screw Air Compressor,Motor drive Portable 50hp,220v/380v/415v 50HZ/60HZ,37KW/50HP,EPT-50.
相关说明：EPT-50
Model | Mpa | EPT-50 |
Free Air Delivery Discharge Pressure | m3/min | 0.7 | 52 |
0.8 | 48 |
1.0 | 43 |
1.25 | 39 |
Cooling Model | Air Cooled |
Discharge Temp | ℃ | ≤Environment Temp+10℃ |
Lubricant | Liter | 18 |
Noise | A | 72 |
Motor | Power | HP | 37/50 |
RPM | RPM | 2950 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Dimension | Length | mm | 2270 |
Width | mm | 1110 |
Height | mm | 1350 |
Weight | KG | 1280 |
Air Outlet Pipe Diameter | inch | 11/2" |
