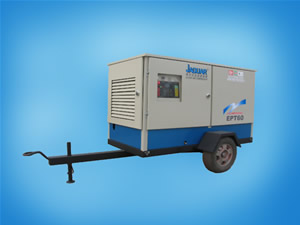

产品名称：EPT-60(Motor drive Portable)
详细参数：Screw Air Compressor,Motor drive Portable 60hp,45KW/60HP,EPT-60.
相关说明：EPT-60
Model | Mpa | EPT-60 |
Free Air Delivery Discharge Pressure | m3/min | 0.7 | 8 |
0.8 | 7.5 |
1.0 | 7 |
1.25 | 6 |
Cooling Model | Air Cooled |
Discharge Temp | ℃ | ≤Environment Temp+10℃ |
Lubricant | Liter | 25 |
Noise | A | 73 |
Motor | Power | HP | 45/60 |
RPM | RPM | 1480 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Dimension | Length | mm | 2270 |
Width | mm | 1160 |
Height | mm | 1370 |
Weight | KG | 1620 |
Air Outlet Pipe Diameter | inch | 2" |
