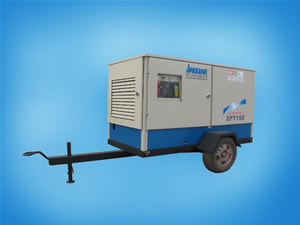

产品名称：EPT-150(Motor drive Portable)
详细参数：Screw Air Compressor,Motor drive Portable 150hp,110KW/150HP,EPT-150.
相关说明：EPT-150
Model | Mpa | EPT-150 |
Free Air Delivery Discharge Pressure | m3/min | 0.7 | 20.5 |
0.8 | 19 |
1.0 | 17.2 |
1.25 | 14.8 |
Cooling Model | Air Cooled |
Discharge Temp | ℃ | ≤Environment Temp+10℃ |
Lubricant | Liter | 70 |
Noise | A | 77 |
Motor | Power | HP | 110/150 |
RPM | RPM | 2970 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Dimension | Length | mm | 2500 |
Width | mm | 1450 |
Height | mm | 1520 |
Weight | KG | 3200 |
Air Outlet Pipe Diameter | inch | 2"1/2"法兰 |
