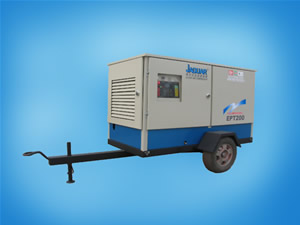

产品名称：EPT-200(Motor drive Portable)
详细参数： Screw Air Compressor,Motor drive Portable 200hp,160KW/220HP,EPT-200.
相关说明：EPT-200
Model | Mpa | EPT-200 |
Free Air Delivery Discharge Pressure | m3/min | 0.7 | 28.3 |
0.8 | 27 |
1.0 | 24.5 |
1.25 | 20.5 |
Cooling Model | Air Cooled |
Discharge Temp | ℃ | ≤Environment Temp+10℃ |
Lubricant | Liter | 94 |
Noise | A | 79 |
Motor | Power | HP | 160/220 |
RPM | RPM | 2970 |
Starting Method |
| Y-ΔStarter |
Electricity |
| 220v/380v/415v 50HZ/60HZ |
Dimension | Length | mm | 4000 |
Width | mm | 1900 |
Height | mm | 1900 |
Weight | KG | 4000 |
Air Outlet Pipe Diameter | inch | 3"法兰 |
